05 Network Address Translation(NAT)

Most content in this document is based on "Computer Networking: A Top-Down Approach" by Jim Kurose.

Summary

Network Address Translation (NAT) is a technique used by routers to map multiple private IP addresses in a local network to a single public IP address. This approach was developed to mitigate the scarcity of IPv4 addresses by allowing local hosts to share one public IP for internet access. NAT works by transparently switching IP addresses and port numbers in packet headers, maintaining a translation table to ensure that incoming responses are correctly routed back to the original host in the local network.

1. What is Network Address Translation(NAT)?

NAT refers to a IP header manipulation in packets conducted by a router. The source private IP of the outgoing packet is switched to the router’s public IP address at the router. In the same manner, the router switches the destination IP address of the incoming packet to the destination host’s private IP.

• For outgoing packets, switch source IP from private to pubilc.
• For incoming packets, switch destination IP from public to private.

2. Why is NAT used at the router?

Limited number of IP addresses

There are exactly 2^32 or 4,294,967,296 total IPv4 addresses. If the number of devices(hosts) existing at this moment is less than this number in the internet, each devices can be assigned a public IP address and devices can communicate each other with the assigned IP address.

Private vs public IP address

The reality is the number of devices that wants to connect to the internet keeps growing, making the IP address scarce. To overcome the limited supply of IP address, people have decided to divide IP addresses into two types:

• Private IP address: assigned to hosts in a Local Area Network(LAN), used to communicate between hosts within the same LAN. Any private IP address in the below blocks is considered private:
  • 10.0.0.0/8 (10.x.x.x)
  • 172.16.0.0/12 (172.16.x.x)
  • 192.168.0.0/16 (192.168.x.x)
• Public IP address: assigned to hosts in a Wide Area Network(WAN). Hosts with the public IP is able to communicate in the internet. Any IP address outside of the private IP range is considered public.

Router - represents local network with public IP

To make use of scarce public IP address as efficiently as possible, people have decided to assign a public IP addresses to the router in a local network and let it represent other hosts when connecting to the internet. In other words, the router is the only device assigned with a public IP in a local network.

3. How does NAT work?

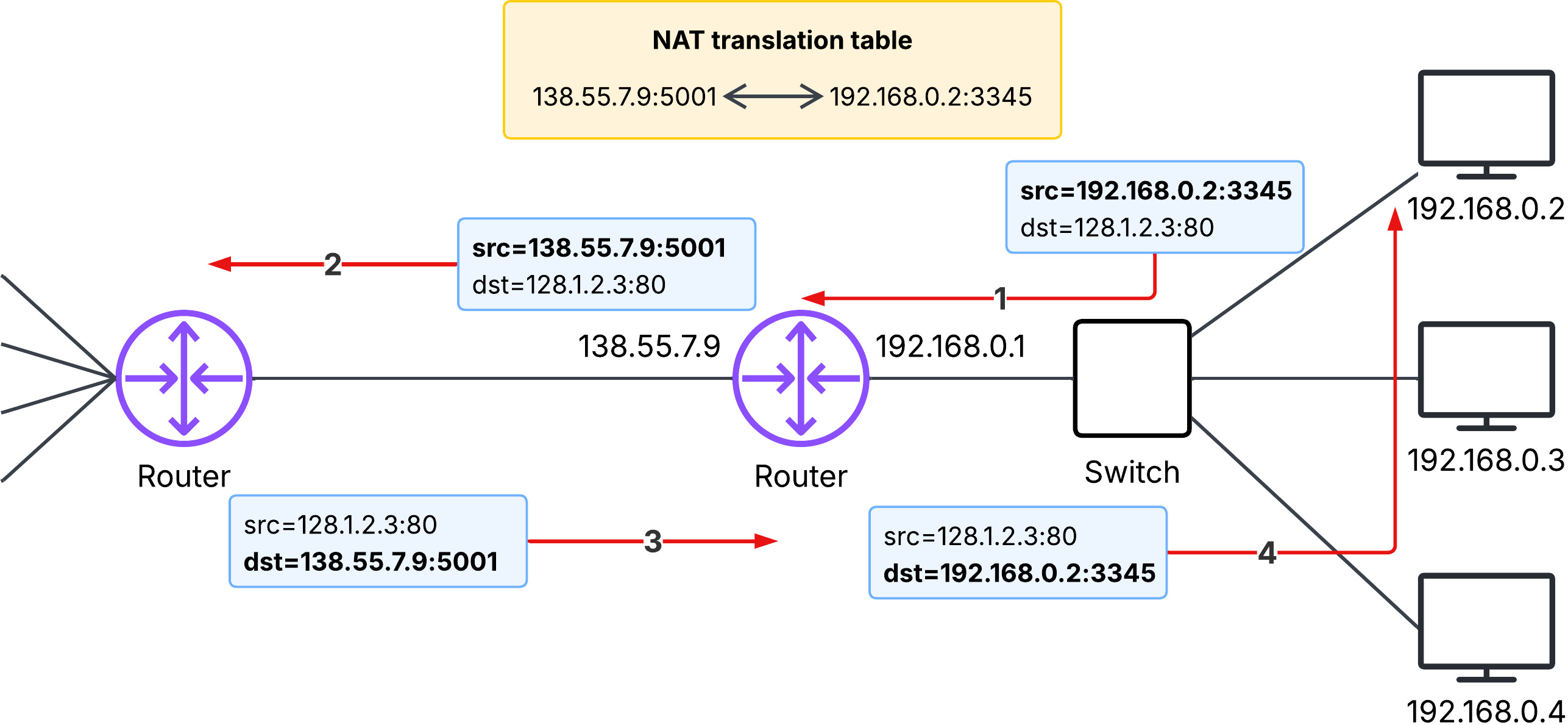

1. Host 192.168.0.2 request a web page on some web server (port 80) with 128.1.2.3. The host 192.168.0.2 assigns the (arbitary) source port number 3345 and sends the datagram into the LAN.
2. The NAT router receives the datagram, generates a new source port 5001, and replaces the original source port number 3345 with the new source port number 5001. The NAT router also adds an entry to its NAT translation table.
3. The web server responds with a datagram whose destination address is the IP address of the NAT router and the port 5001.
4. When this datagram arrives at the NAT router, the router indexes the NAT translation table, obtains the corresponding IP address(192.168.0.2) and port (3345) for the browser in the home netowrk, then rewrites the datagram’s destination address and port, and forwards it into the home network.
