03 EKS Networking Lab 1

EKS Study note

1. Cluster Provisioning

Get terraform resources:

# pull code
git clone https://github.com/gasida/aews.git
cd aews/2w

Set terraform variables:

export TF_VAR_KeyName=$(aws ec2 describe-key-pairs --query "KeyPairs[].KeyName" --output text)
export TF_VAR_ssh_access_cidr=$(curl -s ipinfo.io/ip)/32
echo $TF_VAR_KeyName $TF_VAR_ssh_access_cidr

Deploy EKS. Takes about 12 mins.

terraform init
terraform plan
nohup sh -c "terraform apply -auto-approve" > create.log 2>&1 &
tail -f create.log

Confirm your credentials used to provision the EKS cluster and switch kubectl context to your cluster:

terraform output -raw configure_kubectl
# aws eks update-kubeconfig --region us-east-1 --name myeks

aws eks --region us-east-1 update-kubeconfig --name myeks
kubectl config rename-context $(cat ~/.kube/config | grep current-context | awk '{print $2}') myeks

2. Browse Cluster Default Setting

2.1. Checklist in console

2.2. Cluster Info

Browse cluster info:

kubectl cluster-info
eksctl get cluster

Browse node info:

kubectl get node --label-columns=node.kubernetes.io/instance-type,eks.amazonaws.com/capacityType,topology.kubernetes.io/zone
kubectl get node -v=6

# get node by label
kubectl get node --show-labels
kubectl get node -l tier=primary

Browse pod info:

kubectl get pod -A
kubectl get pdb -n kube-system
# NAME      MIN AVAILABLE   MAX UNAVAILABLE   ALLOWED DISRUPTIONS   AGE
# coredns   N/A             1                 1                     25h

Check node group:

aws eks describe-nodegroup --cluster-name myeks --nodegroup-name myeks-1nd-node-group | jq

Browse addons:

aws eks list-addons --cluster-name myeks | jq
eksctl get addon --cluster myeks
# NAME            VERSION                 STATUS  ISSUES  IAMROLE UPDATE AVAILABLE        CONFIGURATION VALUES               NAMESPACE       POD IDENTITY ASSOCIATION ROLES
# coredns         v1.13.2-eksbuild.3      ACTIVE  0                                         kube-system
# kube-proxy      v1.34.5-eksbuild.2      ACTIVE  0                                         kube-system
# vpc-cni         v1.21.1-eksbuild.5      ACTIVE  0                                       {"env":{"WARM_ENI_TARGET":"1"}}    kube-system

3. AWS VPC CNI

Please refer to 2.3.3. Cloud Native (AWS VPC CNI) section to understand AWS VPC CNI.

3.1. Browse CNI associated files in a worker node

cat /etc/cni/net.d/10-aws.conflist | jq
# {
#   "cniVersion": "0.4.0",
#   "name": "aws-cni",
#   "disableCheck": true,
#   "plugins": [
#     {
#       "name": "aws-cni",
#       "type": "aws-cni",
#       "vethPrefix": "eni",
#       "mtu": "9001",
#       "podSGEnforcingMode": "strict",
#       "pluginLogFile": "/var/log/aws-routed-eni/plugin.log",
#       "pluginLogLevel": "DEBUG",
#       "capabilities": {
#         "io.kubernetes.cri.pod-annotations": true
#       }
#     },
#     {
#       "name": "egress-cni",
#       "type": "egress-cni",
#       "mtu": "9001",
#       "enabled": "false",
#       "randomizeSNAT": "prng",
#       "nodeIP": "",
#       "ipam": {
#         "type": "host-local",
#         "ranges": [
#           [
#             {
#               "subnet": "fd00::ac:00/118"
#             }
#           ]
#         ],
#         "routes": [
#           {
#             "dst": "::/0"
#           }
#         ],
#         "dataDir": "/run/cni/v4pd/egress-v6-ipam"
#       },
#       "pluginLogFile": "/var/log/aws-routed-eni/egress-v6-plugin.log",
#       "pluginLogLevel": "DEBUG"
#     },
#     {
#       "type": "portmap",
#       "capabilities": {
#         "portMappings": true
#       },
#       "snat": true
#     }
#   ]
# }

tree /opt/cni/bin
# /opt/cni/bin
# ├── LICENSE
# ├── aws-cni
# ├── aws-cni-support.sh
# ├── bandwidth
# ├── bridge
# ├── dhcp
# ├── dummy
# ├── egress-cni
# ├── firewall
# ├── host-device
# ├── host-local
# ├── ipvlan
# ├── loopback
# ├── macvlan
# ├── portmap
# ├── ptp
# ├── sbr
# ├── static
# ├── tap
# ├── tuning
# ├── vlan
# └── vrf

3.2. Secondary IP mode overview

As mentioned in 2.3.3. Cloud Native (AWS VPC CNI), Secondary IP mode is the default mode for AWS VPC CNI. It is deployed as a DaemonSet named aws-node. The following is the IP address allocation process conducted by CNI:

  1. When a worker node is provisioned, a primary ENI is attached to the node.
  2. The CNI allocates a warm pool of ENIs and secondary IP addresses from the subnet attached to the node’s primary ENI.
  3. By default, ipamd attempts to allocate an additional ENI to the node. ipamd allocates this extra ENI as soon as a single Pod is scheduled and assigned a secondary IP address from the primary ENI. This warm ENI enables faster Pod networking.
  4. When the pool of secondary IP addresses is exhausted, the CNI adds another ENI to allocate more.

The number of ENIs and IP addresses in the pool is configured through environment variables called WARM_ENI_TARGET, WARM_IP_TARGET, MINIMUM_IP_TARGET. Here’s what each variable does:

Item WARM_ENI_TARGET WARM_IP_TARGET MINIMUM_IP_TARGET
Control Unit ENI IP IP
Usage Simple / Aggressive Fine-grained control Initial allocation
Recommendation ❌ (Set to 0 to disable) ✅ ✅
Scaling Response Very Fast Fast Fast only initially
Resource Efficiency Low High Medium

WARM_ENI_TARGET is set to 1:

eksctl get addon --name vpc-cni --cluster myeks
# NAME    VERSION                 STATUS  ISSUES  IAMROLE UPDATE AVAILABLE        CONFIGURATION VALUES            NAMESPACE       POD IDENTITY ASSOCIATION ROLES
# vpc-cni v1.21.1-eksbuild.5      ACTIVE  0                                       {"env":{"WARM_ENI_TARGET":"1"}} kube-system

kubectl get daemonset aws-node --show-managed-fields -n kube-system -o yaml
        # - name: ENABLE_SUBNET_DISCOVERY
        #   value: "true"
        # - name: NETWORK_POLICY_ENFORCING_MODE
        #   value: standard
        # - name: VPC_CNI_VERSION
        #   value: v1.21.1
        # - name: VPC_ID
        #   value: vpc-010235c6a899415ba
        # - name: WARM_ENI_TARGET
        #   value: "1"
        # - name: WARM_PREFIX_TARGET
        #   value: "1"

Five secondary IP addresses per ENI are allocated in a warm pool. This matches the behavior where WARM_ENI_TARGET=1 ensures that at least one extra “warm” ENI is always available with its full capacity of secondary IPs pre-allocated to the node’s pool, reducing the latency when a new Pod needs an IP.

4. Networking Configuration on a Worker Node

4.1. Variable setting

EC2 ENI IP addresses:

aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output table

------------------------------------------------------------------------
|                           DescribeInstances                          |
+-----------------------+------------------+----------------+----------+
|     InstanceName      |  PrivateIPAdd    |  PublicIPAdd   | Status   |
+-----------------------+------------------+----------------+----------+
|  myeks-1nd-node-group |  192.168.7.237   |  54.204.76.91  |  running |
|  myeks-1nd-node-group |  192.168.11.105  |  54.84.190.100 |  running |
|  myeks-1nd-node-group |  192.168.2.202   |  44.201.60.214 |  running |
+-----------------------+------------------+----------------+----------+

Set variables:

N1=54.204.76.91
N2=54.84.190.100
N3=44.201.60.214

ssh into worker nodes:

for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh -o StrictHostKeyChecking=no ec2-user@$i hostname; echo; done

4.2. Browse networking configurations

Browse aws-node DaemonSet:

kubectl get daemonset aws-node --namespace kube-system -owide

kubectl get ds aws-node -n kube-system -o json | jq '.spec.template.spec.containers[0].env'

Check kube-proxy config:

kubectl describe cm -n kube-system kube-proxy-config
# mode: "iptables"

kubectl describe cm -n kube-system kube-proxy-config | grep iptables: -A5
# iptables:
#   masqueradeAll: false
#   masqueradeBit: 14
#   minSyncPeriod: 0s
#   syncPeriod: 30s
# ipvs:

Check IPs:

# Node IPs
aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output table

# Pod IPs
kubectl get pod -n kube-system -o=custom-columns=NAME:.metadata.name,IP:.status.podIP,STATUS:.status.phase

Browse CNI associated logs with the following commands:

# /var/log/aws-routed-eni contains log files
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i tree /var/log/aws-routed-eni ; echo; done

# plugin.log and ipamd.log collects logs about IP address allocation activities
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i sudo cat /var/log/aws-routed-eni/plugin.log | jq ; echo; done
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i sudo cat /var/log/aws-routed-eni/ipamd.log | jq ; echo; done
{
  "level": "debug",
  "ts": "2026-03-25T09:23:46.634Z",
  "caller": "ipamd/ipamd.go:1669",
  "msg": "IP pool stats for network card 0: Total IPs/Prefixes = 10/0, AssignedIPs/CooldownIPs: 1/0, c.maxIPsPerENI = 5"
}

Browse Network interface on each node.

for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i sudo ip -br -c addr; echo; done
>> node 54.204.76.91 <<
lo               UNKNOWN        127.0.0.1/8 ::1/128
ens5             UP             192.168.7.237/22 metric 512 fe80::10dc:96ff:fe8a:51c7/64

>> node 54.84.190.100 <<
lo               UNKNOWN        127.0.0.1/8 ::1/128
ens5             UP             192.168.11.105/22 metric 512 fe80::8ff:fdff:fe95:3205/64
eni19248b3518e@if3 UP             fe80::c055:29ff:fe4a:bf70/64
ens6             UP             192.168.10.47/22 fe80::8ff:c2ff:fec6:ec69/64

>> node 44.201.60.214 <<
lo               UNKNOWN        127.0.0.1/8 ::1/128
ens5             UP             192.168.2.202/22 metric 512 fe80::3b:7aff:fe60:26af/64
enic4269060f34@if3 UP             fe80::7c29:9cff:feab:7a89/64
ens6             UP             192.168.0.137/22 fe80::c4:b6ff:feaf:5339/64

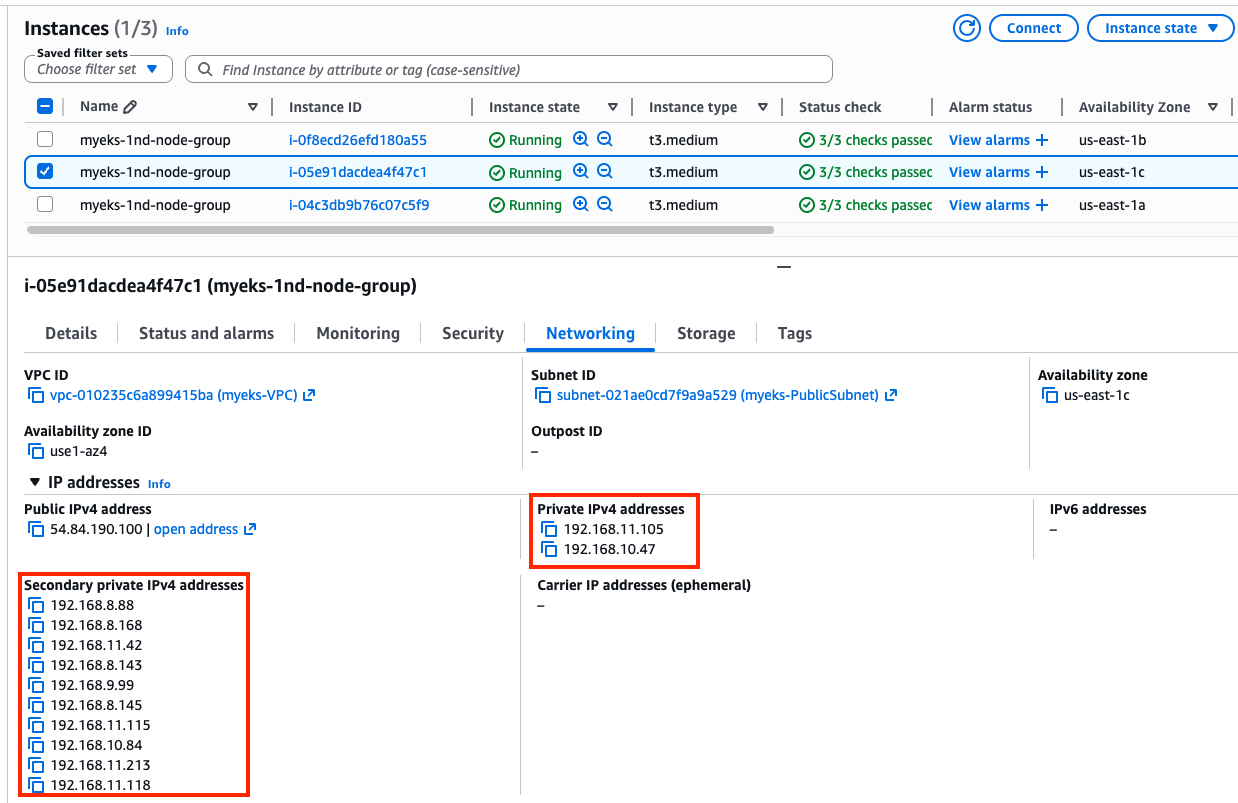

Above output indicates that one node has only one ENI while others have multiple ENIs, because the first node has no pod assigned a new IP address.

kubectl get pod -n kube-system -l k8s-app=kube-dns -owide
NAME                       READY   STATUS    RESTARTS   AGE   IP              NODE                             NOMINATED NODE   READINESS GATES
coredns-6d58b7d47c-m5mq4   1/1     Running   0          41h   192.168.8.88    ip-192-168-11-105.ec2.internal   <none>           <none>
coredns-6d58b7d47c-njdm8   1/1     Running   0          41h   192.168.0.112   ip-192-168-2-202.ec2.internal    <none>           <none>

k get po -A -owide
NAMESPACE     NAME                       READY   STATUS    RESTARTS   AGE   IP               NODE                             NOMINATED NODE   READINESS GATES
kube-system   aws-node-4m5rm             2/2     Running   0          42h   192.168.2.202    ip-192-168-2-202.ec2.internal    <none>           <none>
kube-system   aws-node-rk8rf             2/2     Running   0          42h   192.168.7.237    ip-192-168-7-237.ec2.internal    <none>           <none>
kube-system   aws-node-w69rz             2/2     Running   0          42h   192.168.11.105   ip-192-168-11-105.ec2.internal   <none>           <none>
kube-system   coredns-6d58b7d47c-m5mq4   1/1     Running   0          42h   192.168.8.88     ip-192-168-11-105.ec2.internal   <none>           <none>
kube-system   coredns-6d58b7d47c-njdm8   1/1     Running   0          42h   192.168.0.112    ip-192-168-2-202.ec2.internal    <none>           <none>
kube-system   kube-proxy-5qmhn           1/1     Running   0          42h   192.168.2.202    ip-192-168-2-202.ec2.internal    <none>           <none>
kube-system   kube-proxy-kfh4m           1/1     Running   0          42h   192.168.7.237    ip-192-168-7-237.ec2.internal    <none>           <none>
kube-system   kube-proxy-q998k           1/1     Running   0          42h   192.168.11.105   ip-192-168-11-105.ec2.internal   <none>           <none>

kubectl get pods tells you only core-dns pods got assigned a new IP address and are running in nodes with multiple ENIs. Other pods such as aws-node and kube-proxy are configured with hostNetwork: true and thus using the node IP address. Why is that so?

Check routes on each node:

for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i sudo ip -c route; echo; done
>> node 54.204.76.91 <<
default via 192.168.4.1 dev ens5 proto dhcp src 192.168.7.237 metric 512
192.168.0.2 via 192.168.4.1 dev ens5 proto dhcp src 192.168.7.237 metric 512
192.168.4.0/22 dev ens5 proto kernel scope link src 192.168.7.237 metric 512
192.168.4.1 dev ens5 proto dhcp scope link src 192.168.7.237 metric 512

>> node 54.84.190.100 <<
default via 192.168.8.1 dev ens5 proto dhcp src 192.168.11.105 metric 512
192.168.0.2 via 192.168.8.1 dev ens5 proto dhcp src 192.168.11.105 metric 512
192.168.8.0/22 dev ens5 proto kernel scope link src 192.168.11.105 metric 512
192.168.8.1 dev ens5 proto dhcp scope link src 192.168.11.105 metric 512
192.168.8.88 dev eni19248b3518e scope link

>> node 44.201.60.214 <<
default via 192.168.0.1 dev ens5 proto dhcp src 192.168.2.202 metric 512
192.168.0.0/22 dev ens5 proto kernel scope link src 192.168.2.202 metric 512
192.168.0.1 dev ens5 proto dhcp scope link src 192.168.2.202 metric 512
192.168.0.2 dev ens5 proto dhcp scope link src 192.168.2.202 metric 512
192.168.0.112 dev enic4269060f34 scope link

IpamD debugging command to list up assigned ENIs and IPs per node:

for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i curl -s http://localhost:61679/v1/enis | jq; echo; done

4.3. Lab - Network Multipool Deployment

4.3.1. Leb Setup

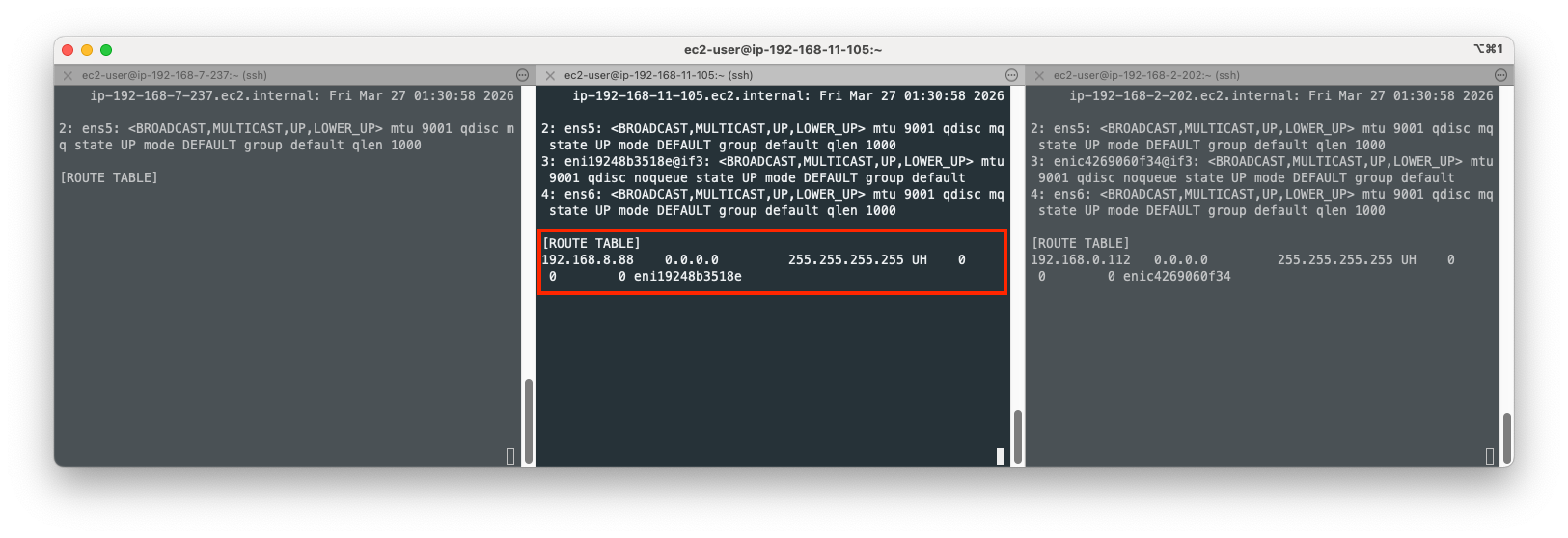

Open your terminal on each node and print the route table:

ssh ec2-user@$N1
watch -d "ip link | egrep 'ens|eni' ;echo;echo "[ROUTE TABLE]"; route -n | grep eni"

ssh ec2-user@$N2
watch -d "ip link | egrep 'ens|eni' ;echo;echo "[ROUTE TABLE]"; route -n | grep eni"

ssh ec2-user@$N3
watch -d "ip link | egrep 'ens|eni' ;echo;echo "[ROUTE TABLE]"; route -n | grep eni"

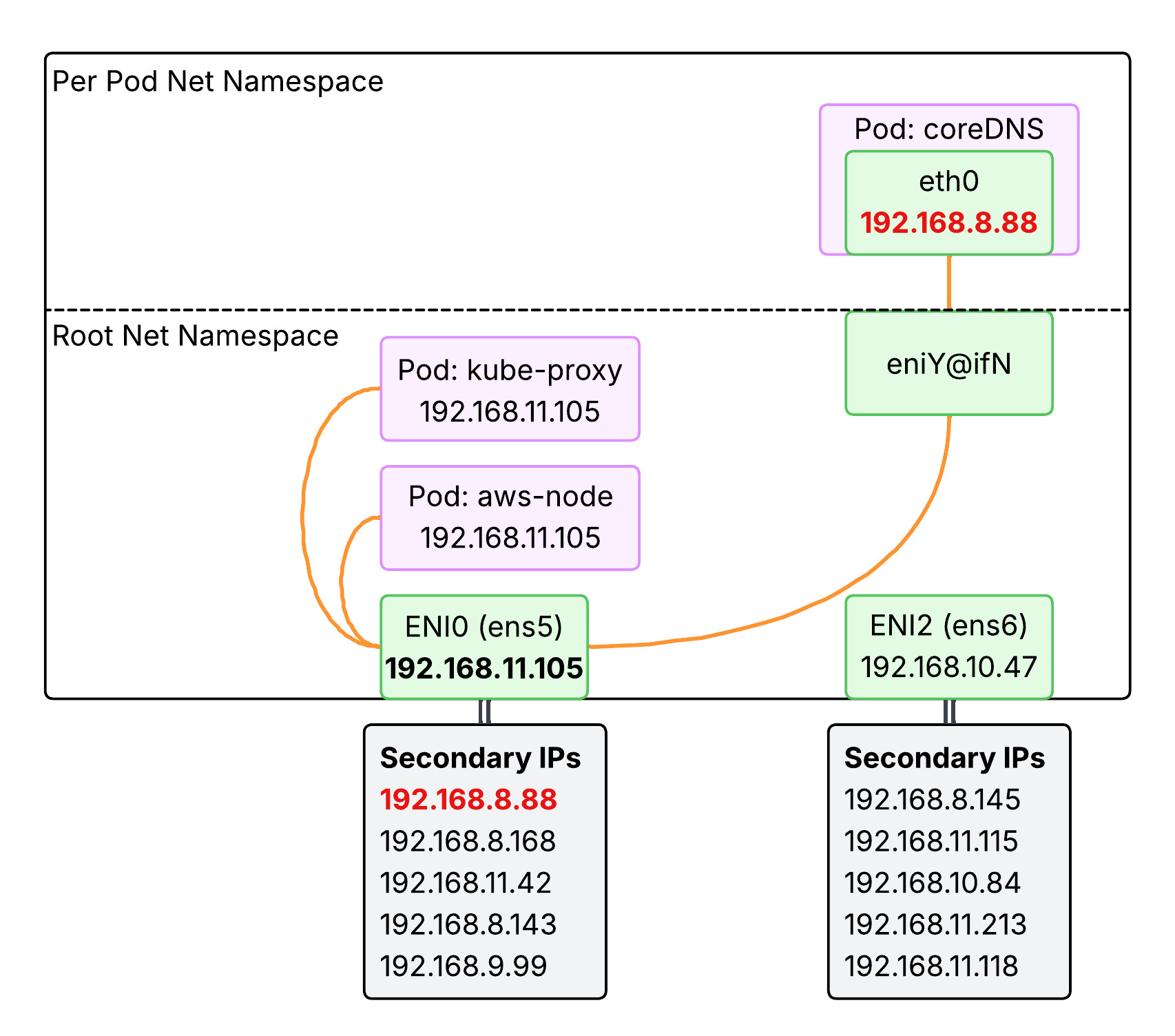

Note that 192.168.8.88 is the IP for coredns pod in the second node and 192.168.0.112 is the IP for coredns pod in the third node. The route entry on the second node is a Host(Node) Route used by kernel to direct traffic to the coredns pod. Here is the breakdown of what each part means:

This route tells the node: “If you have a packet for Pod 192.168.8.88, send it straight into the virtual interface eni19248b3518e.” Without this route, the host wouldn’t know which of its many Pod interfaces to use for that specific IP.

4.3.2. ENI and IPs allocated to new pods

Let’s deploy the following pods and see what happens on each node.

cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: netshoot-pod
spec:
  replicas: 3
  selector:
    matchLabels:
      app: netshoot-pod
  template:
    metadata:
      labels:
        app: netshoot-pod
    spec:
      containers:
      - name: netshoot-pod
        image: praqma/network-multitool
        ports:
        - containerPort: 80
        - containerPort: 443
        env:
        - name: HTTP_PORT
          value: "80"
        - name: HTTPS_PORT
          value: "443"
      terminationGracePeriodSeconds: 0
EOF

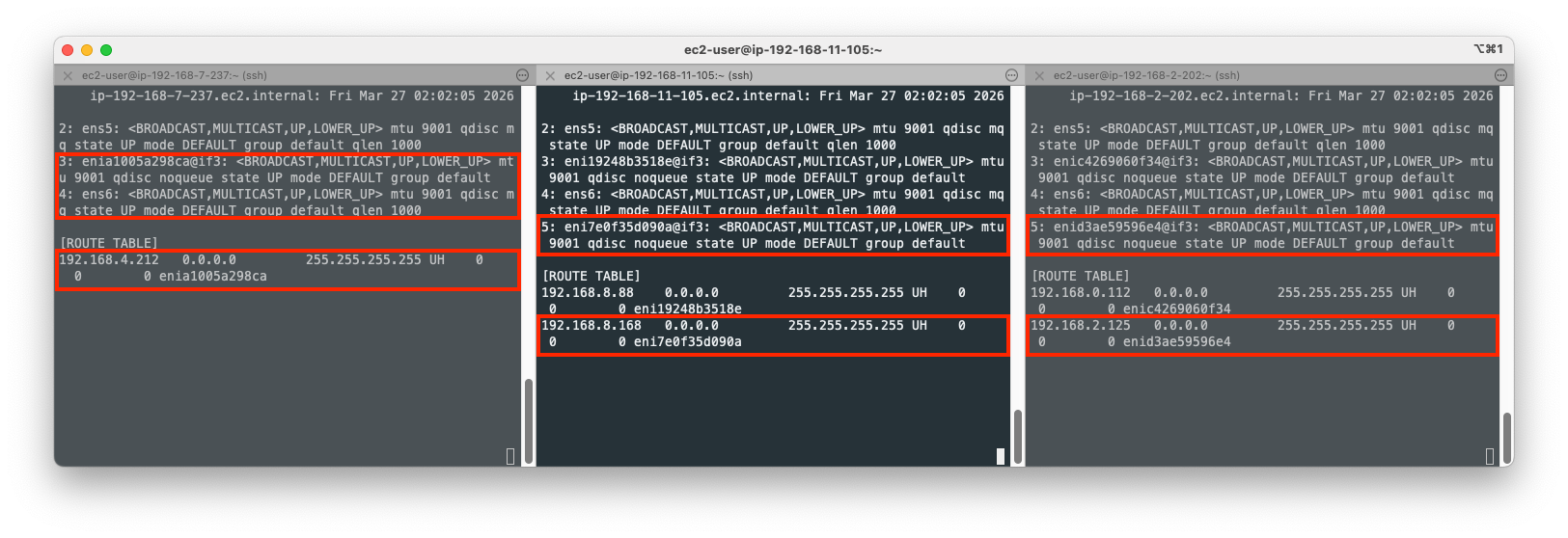

With the three pods deployed, new ENIs and route entries are added across nodes. Here’s what has happened on each node:

To know more about veth, please refer to 2.2. Communication within a node section.

You can confirm IP addresses appeared on new routes with the following command:

kubectl get pod -o=custom-columns=NAME:.metadata.name,IP:.status.podIP
NAME                           IP
netshoot-pod-64fbf7fb5-9zglk   192.168.4.212
netshoot-pod-64fbf7fb5-r6vq2   192.168.2.125
netshoot-pod-64fbf7fb5-v54t4   192.168.8.168

4.3.3. Network Interface on Node

Check network interface on the first node.

ssh ec2-user@$N1
ip -c addr
...
2: ens5: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9001 qdisc mq state UP group default qlen 1000
    link/ether 12:dc:96:8a:51:c7 brd ff:ff:ff:ff:ff:ff
    altname enp0s5
    inet 192.168.7.237/22 metric 512 brd 192.168.7.255 scope global dynamic ens5
       valid_lft 3086sec preferred_lft 3086sec
    inet6 fe80::10dc:96ff:fe8a:51c7/64 scope link proto kernel_ll
       valid_lft forever preferred_lft forever
...

Note that 192.168.7.237/22 is the IP CIDR allocated to ens5 by CNI, which netshoot-pod IP address(192.168.4.212) is included in.

Check routes:

ip -c route
default via 192.168.4.1 dev ens5 proto dhcp src 192.168.7.237 metric 512
192.168.0.2 via 192.168.4.1 dev ens5 proto dhcp src 192.168.7.237 metric 512
192.168.4.0/22 dev ens5 proto kernel scope link src 192.168.7.237 metric 512
192.168.4.1 dev ens5 proto dhcp scope link src 192.168.7.237 metric 512
192.168.4.212 dev enia1005a298ca scope link

Here’s how to read these route entries:

Note that even though the Pod IP (192.168.4.212) technically falls within the node’s subnet (192.168.4.0/22), the host route is more specific (/32 vs /22), so the kernel correctly prioritizes sending the traffic through the veth pair instead of out the physical ENI.

5. Communication Between Pods on Different Nodes

The goal of the following test is to confirm the direct pod-to-pod communication across nodes without IP address overlay or NAT.

Variables setup:

PODNAME1=$(kubectl get pod -l app=netshoot-pod -o jsonpath='{.items[0].metadata.name}')
PODNAME2=$(kubectl get pod -l app=netshoot-pod -o jsonpath='{.items[1].metadata.name}')
PODNAME3=$(kubectl get pod -l app=netshoot-pod -o jsonpath='{.items[2].metadata.name}')
echo $PODNAME1 $PODNAME2 $PODNAME3
netshoot-pod-64fbf7fb5-9zglk netshoot-pod-64fbf7fb5-v54t4 netshoot-pod-64fbf7fb5-r6vq2


PODIP1=$(kubectl get pod -l app=netshoot-pod -o jsonpath='{.items[0].status.podIP}')
PODIP2=$(kubectl get pod -l app=netshoot-pod -o jsonpath='{.items[1].status.podIP}')
PODIP3=$(kubectl get pod -l app=netshoot-pod -o jsonpath='{.items[2].status.podIP}')
echo $PODIP1 $PODIP2 $PODIP3
192.168.4.212 192.168.8.168 192.168.2.125

# send ping from pod1 to pod2
kubectl exec -it $PODNAME1 -- ping -c 2 $PODIP2
# send ping from pod2 to pod3
kubectl exec -it $PODNAME2 -- ping -c 2 $PODIP3
# send ping from pod3 to pod1
kubectl exec -it $PODNAME3 -- ping -c 2 $PODIP1

# http
kubectl exec -it $PODNAME1 -- curl -s http://$PODIP2
# https
kubectl exec -it $PODNAME1 -- curl -sk https://$PODIP2

Open your terminal on node 1 and 2 and set it ready to capture ping(icmp) packets:

ssh ec2-user@$N1
sudo tcpdump -i any -nn icmp

ssh ec2-user@$N2
sudo tcpdump -i any -nn icmp

Send ping from pod1 to pod2:

kubectl exec -it $PODNAME1 -- ping -c 2 $PODIP2

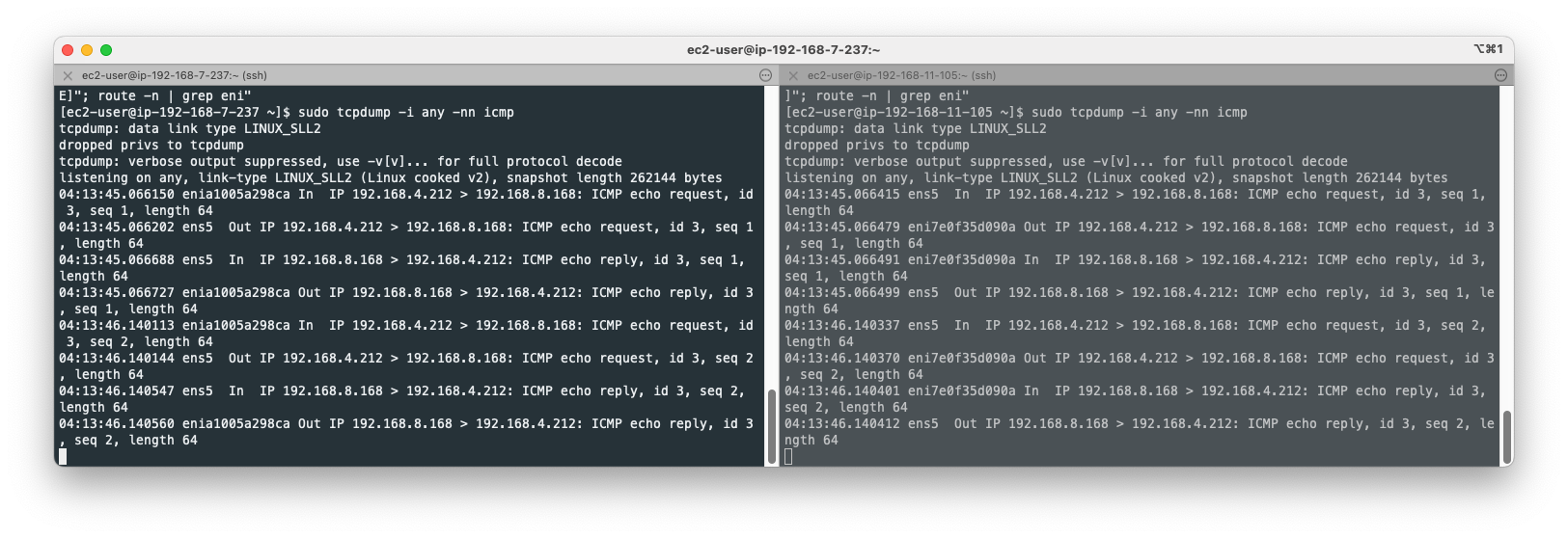

Terminals for node 1 and 2 would print icmp packets:

As you can see above, both source and destination IP addresses do not change when packets go in and out of the ENIs. Only IP addresses we can find are netshoot-pod pod IP addresses(192.168.4.212 and 192.168.8.168), indicating that packets are not overlayed or NATed.

Let’s set two nodes’ terminal to monitor packets on ENIs(ens5):

sudo tcpdump -i ens5 -nn icmp

Send ping again from pod1 to pod2:

kubectl exec -it $PODNAME1 -- ping -c 2 $PODIP2

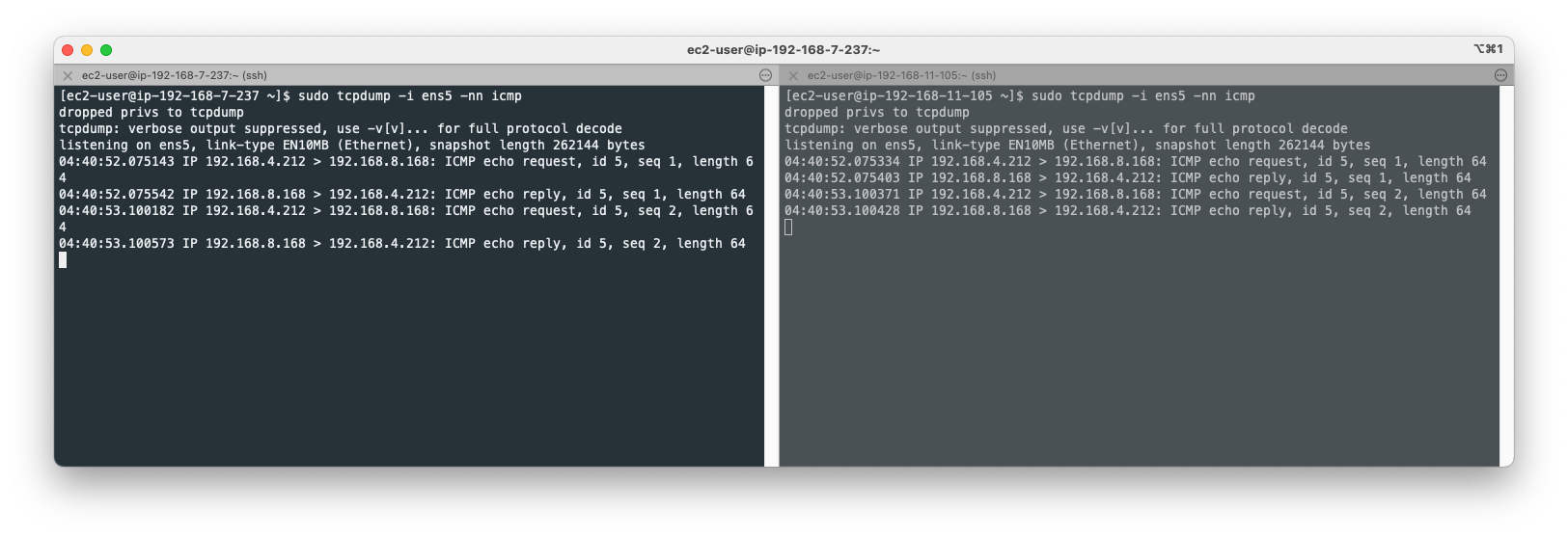

Again, only netshoot-pod pod IP addresses appear on the terminal. Physical node IP addresses do not appear.

6. Communication from Pod to External Host

When a pod call to the external host, the outbound packet is SNATed on the network interface(ens5).

Send ping from pod1 to google.com:

kubectl exec -it $PODNAME1 -- ping -c 1 www.google.com

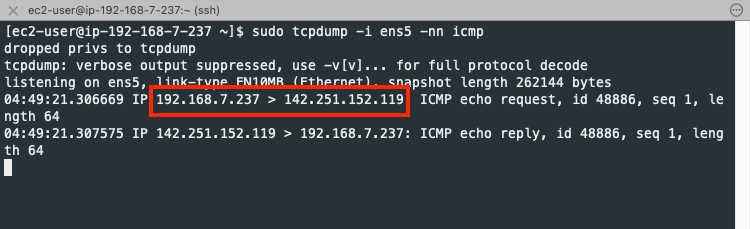

The source IP address(192.168.4.212) is changed to the node IP(192.168.7.237) by SNAT on the network interface(ens5) in the first node.

Confirm 192.168.7.237 is the node IP address:

kubecttl get node
NAME                             STATUS   ROLES    AGE    VERSION
ip-192-168-11-105.ec2.internal   Ready    <none>   2d1h   v1.34.4-eks-f69f56f
ip-192-168-2-202.ec2.internal    Ready    <none>   2d1h   v1.34.4-eks-f69f56f
ip-192-168-7-237.ec2.internal    Ready    <none>   2d1h   v1.34.4-eks-f69f56f
